Aisle Master OP Narrow Aisle Forklift

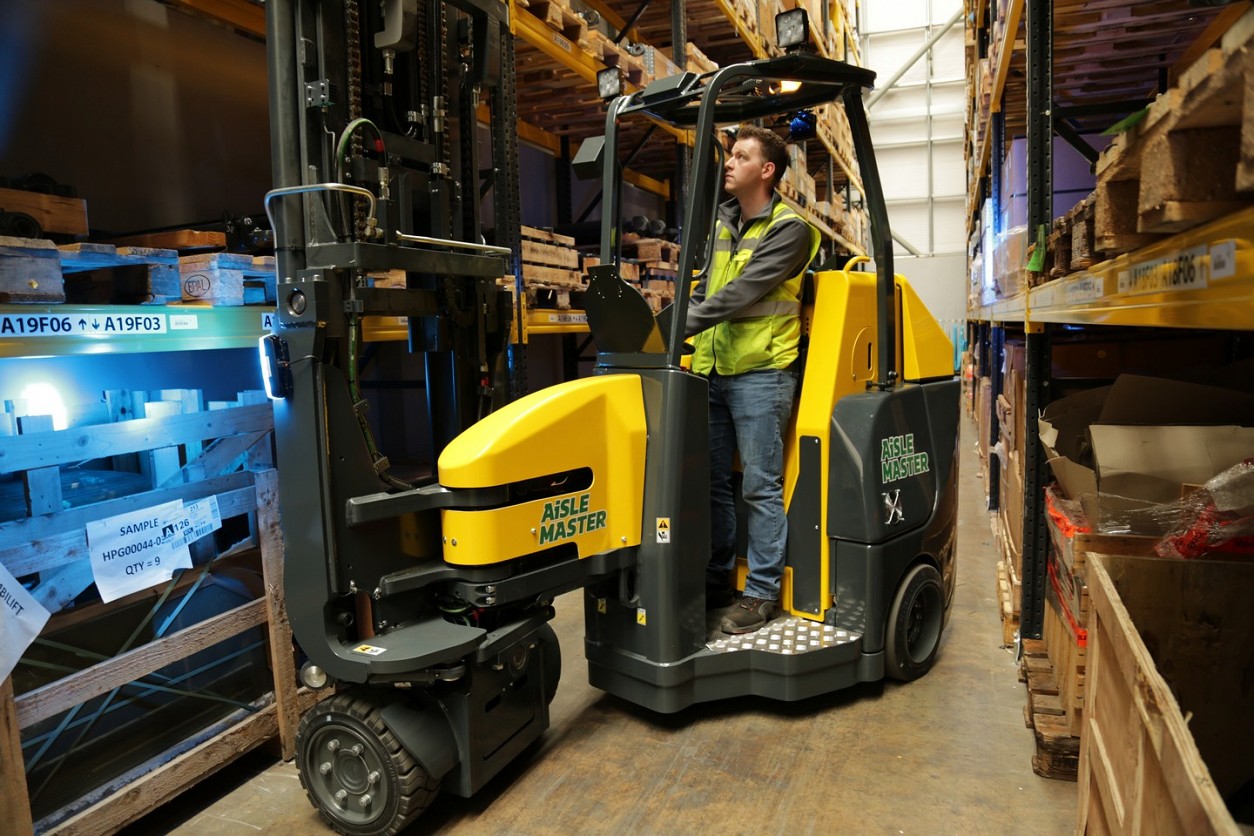

The NEW Aisle Master-OP (AME-OP) is a stand-on electric powered model that combines the advantages of a narrow aisle articulated forklift and an order picker for versatile operation in warehousing applications.

Order picking made easy with Aisle Master-OP

Influenced by customer feedback recent soaring growth of e-commerce, the Aisle Master articulated forklift range is designed for warehouses and allows ease of movement through very narrow aisles for both order picking and replenishing.

The AME-OP truck has all the key advantages of the conventional Aisle Master – indoor/outdoor, for loading/offloading and for stock replenishment.

Made for narrow aisles with Aisle Master-OP

The electric Aisle Master-OP is available in a number of variants, with lift capacities from 1,500kg to 2,500kg, lift heights of up to 12m, and can operate in aisles as narrow as 1650mm while allowing order picking from either side.

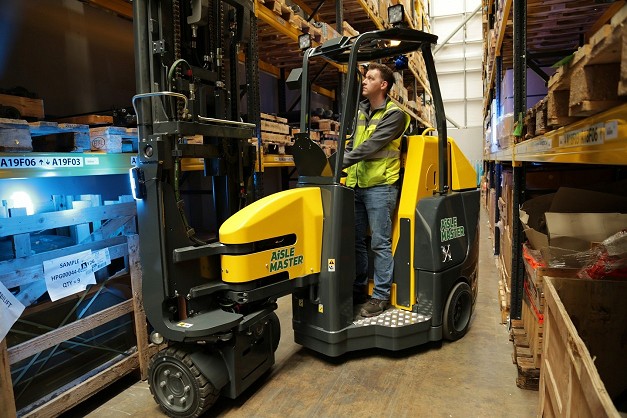

The low floor height of just 280mm (11”) enables convenient, single step access from both sides of the truck which speeds up order picking compared to the operator having to get in and out from a seated position.

Our AME-OP makes easy work of order picking in warehouses and turns storage space into a profit zone and can help you optimise your racking layout by reducing aisle widths.

Convenience and efficiency with Aisle Master-OP

High quality, robust construction of chassis and mast means Aisle Master are designed to withstand heavy-duty use inside and out.

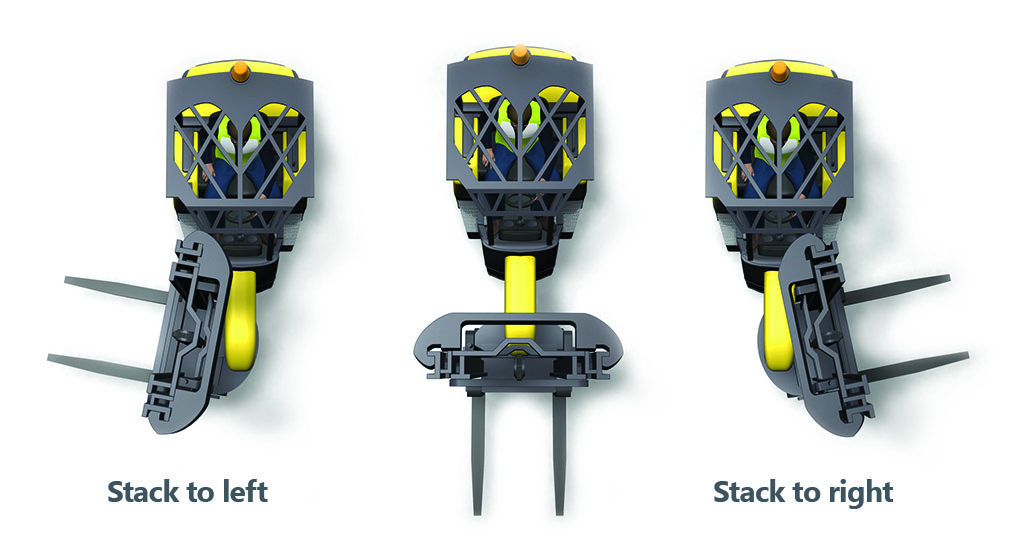

The Aisle Master-OP features a patented chain steering system, which allows the truck to articulate more than 205°, and an inline drive motor and front drive axle, all of which enable narrower aisle operation.

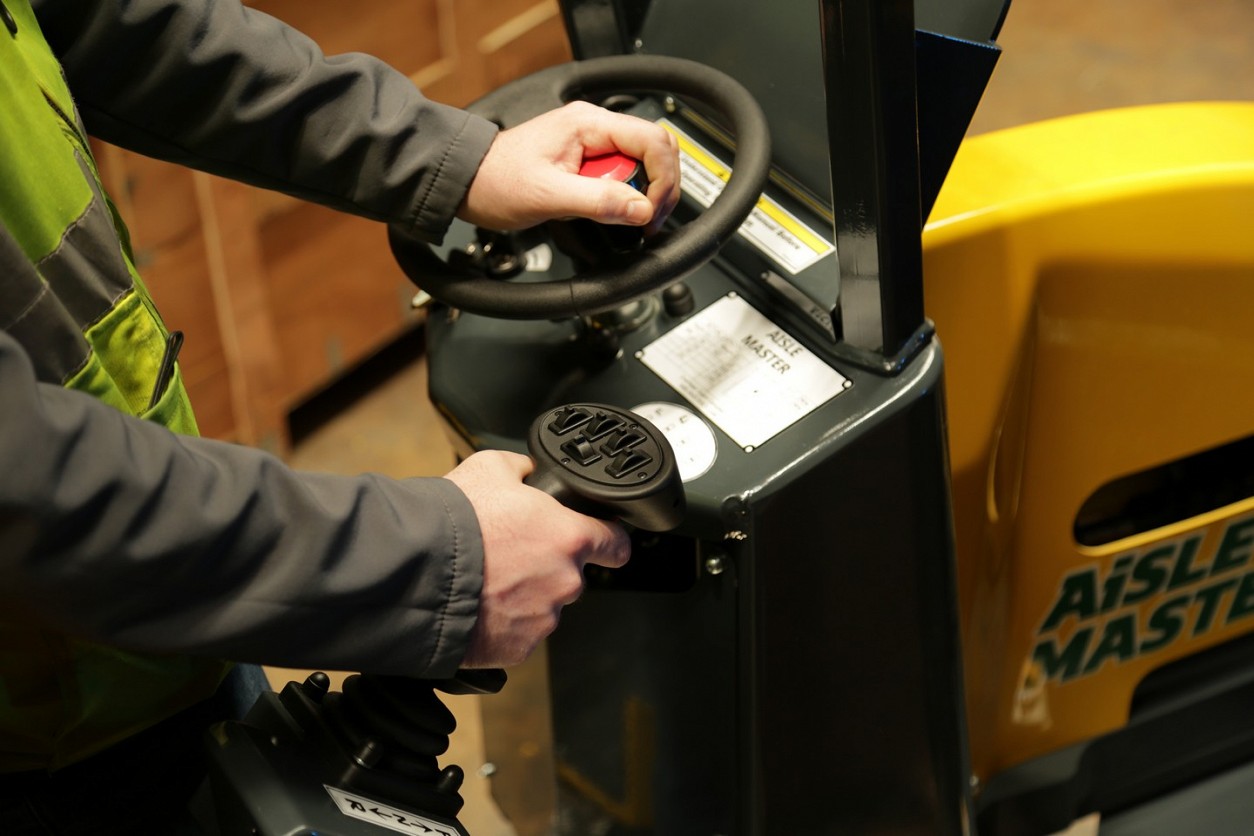

Low step in and step out capabilities means easy order picking while the multifunctional programmable joy stick control lever in the operator compartment, which also controls the hydraulics and traction, is adjustable to enable comfortable and ergonomic working conditions for operators of all sizes.

The Operator Presence Detection floor pad engages the parking brake automatically when the operator steps off the truck to carry out Order Picking.

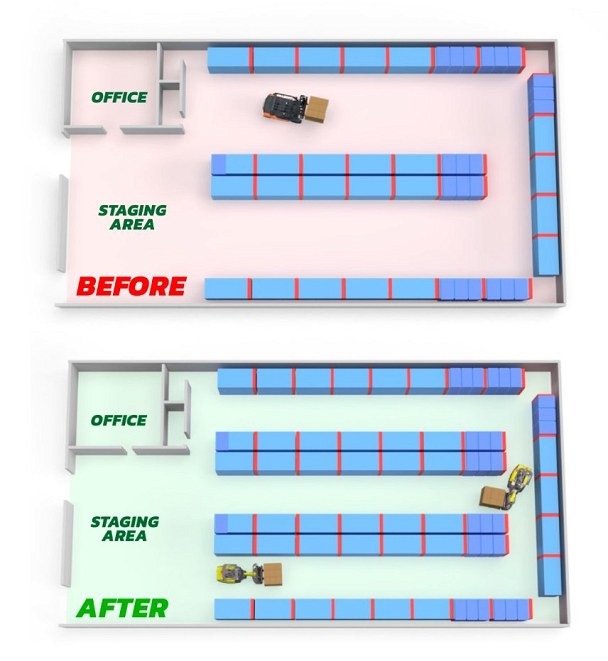

Increase your storage by up to 50%

When you require additional warehouse space, you have two options -extend your existing facility or move premises. With our Aisle Master range such as the Aisle Master-OP, you have a third option.

By optimising your racking layout and reducing aisle widths down using Aisle Master, you can dramatically increase your storage capacity within your existing facility. Greater reach and capacity means 50% increase in warehouse storage and reduced costs.

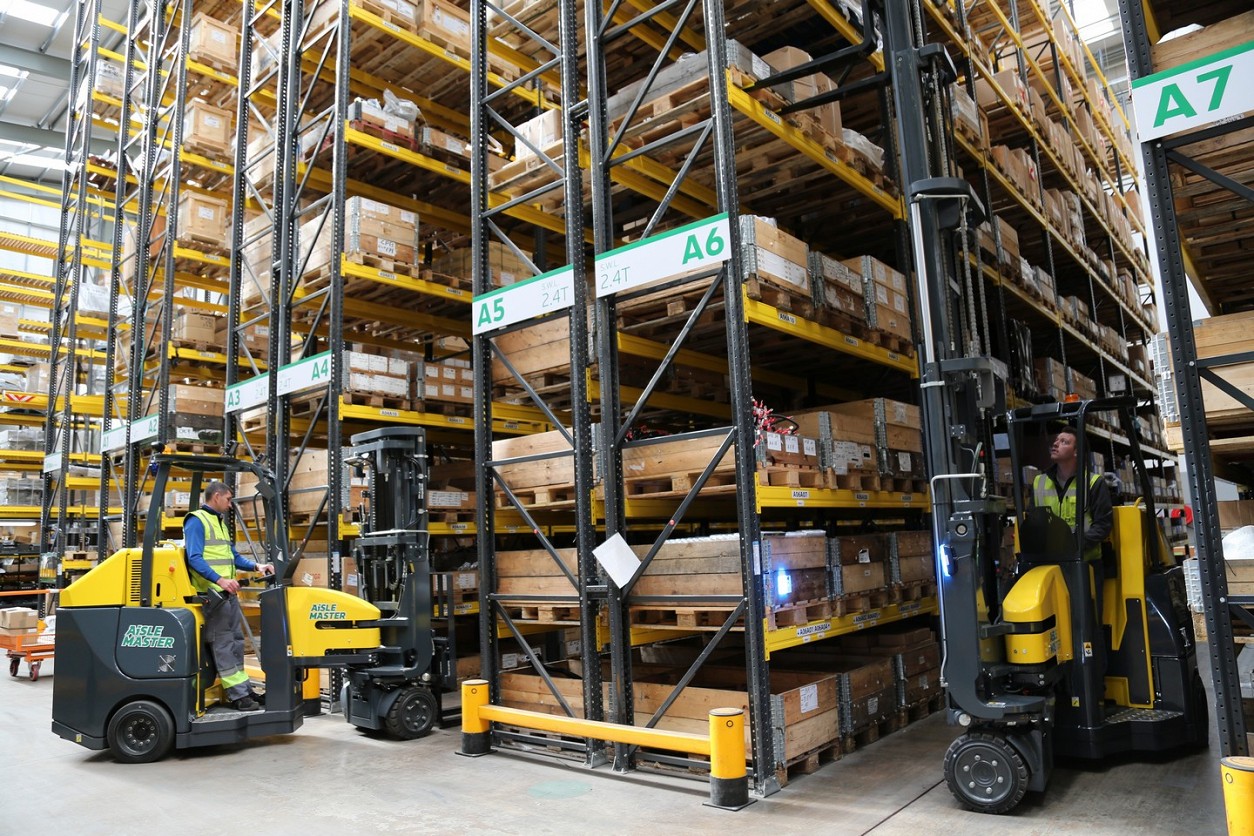

Aisle master order picker articulated forkliftbefore after w1254 Aisle master order picker articulated forklift1 w1254

Request brochure (PDF)

OP
Load Capacity (kg) 2,000
Load Centre (mm) 600
Mast Range (mm) 4,300 – 12,100
Battery Voltage / Capacity 48V / 775 / 930Ah
