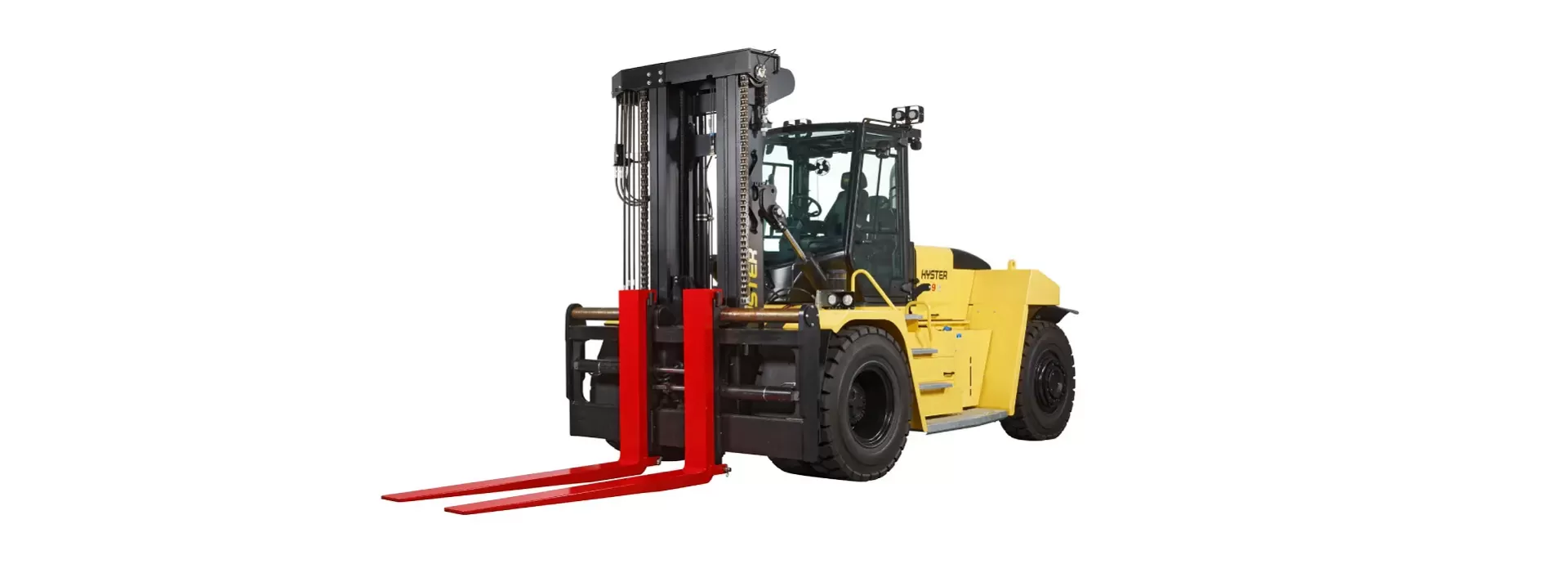

Among the most compact machines available on the market in this capacity range, these heavy-duty forklift trucks are trusted for their reliability and strength around the world.
With fast travel, impressive lift speeds and a high-performance powertrain featuring engine and transmission protection systems, these trucks deliver maximum reliability and a low total cost of ownership.
Ergonomic Cab
The new ergonomically design high visibility cab puts greater productivity within easy reach. Equipped with an armoured glass top window, curved front and rear windows and steel doors with tempered glass, the new operator cab provides excellent all-around visibility.

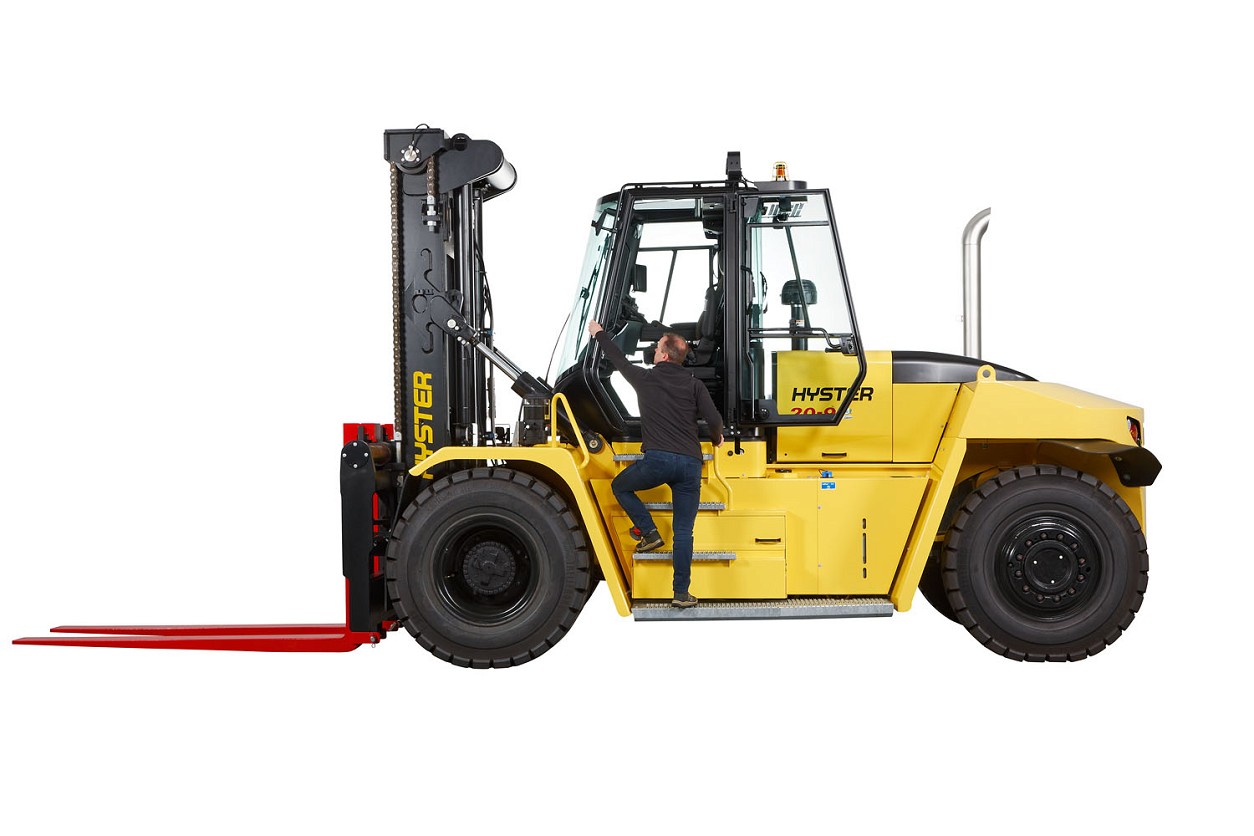

Inside the cab there is more space with the largest entry area in the industry, more control with a full-colour screen displaying performance data at the operator’s fingertips and more comfort with an exclusive lateral sliding seat, adjustable steering column and foot pedal, plus ergonomic controls.
Compact Wheelbase
The ultra compact short wheelbase models are designed for applications where operating space is restricted. The compact ‘S’ (short) models feature a wheelbase of just 3.50m. With fast travel and lift speeds, the high-performance power train features engine and transmission protection systems providing maximum reliability and low total cost of ownership.
Multi-purpose Carriage and Tynes
A multipurpose, hook-type, side shift, fork positioning carriage is available for the toughest applications and heaviest loads. A range of different fork and front-end attachments are also available to suit almost every application.
- Pin Type carriage +/- independent or simultaneous Fork Positioner
- Pin Type Side Shift frame carriage +/-independent or simultaneous Fork Positioner
- Pin Type Dual Function carriage with Side Shift and independent Fork positioner
- Hook Type Dual Function carriage with Side Shift and Fork positioner (independent or simultaneous FP)
- Hook Type Dual Function carriage with Side Shift and Fork positioner for Quick Disconnect forks (independent or simultaneous FP)
- Hook Type Dual Function carriage with Side Shift and Fork positioner for Quick Disconnect forks and 2 auxiliary valves to control a hang-on attachment with 2 hydraulic functions
Energy Efficient
New performance optimisation developments such as cooling on demand, load sensing hydraulics (power on demand), RPM management and alternate engine idle speed help to reduce the total fuel consumption in most applications, whilst the ECO-eLo Fuel Efficiency Mode reduces the maximum engine speed and optimises fuel efficiency, further decreasing the cost of ownership.
Oil-immersed (wet) disc brakes help support lower cost of operation Stage IV compliant, producing lower emissions and offering up to 20% fuel savings compared to the previous generation of product, significantly reducing lifetime costs.
Extended Service Intervals
Designed to reduce downtime to an absolute minimum. Hyster trucks use only the most reliable industrial quality components to keep your equipment and your operation running smoothly.
Hyster trucks also offer simple access, state of the art fault finding diagnostics plus unrivalled parts availability – everything to make servicing and maintenance faster and easier. 12 months / 2000 hours Manufacturer’s warranty provides operators with added peace of mind. For servicing, the tilting cab provides easy access to all major components, enabling quick and easy maintenance and longer service intervals.
