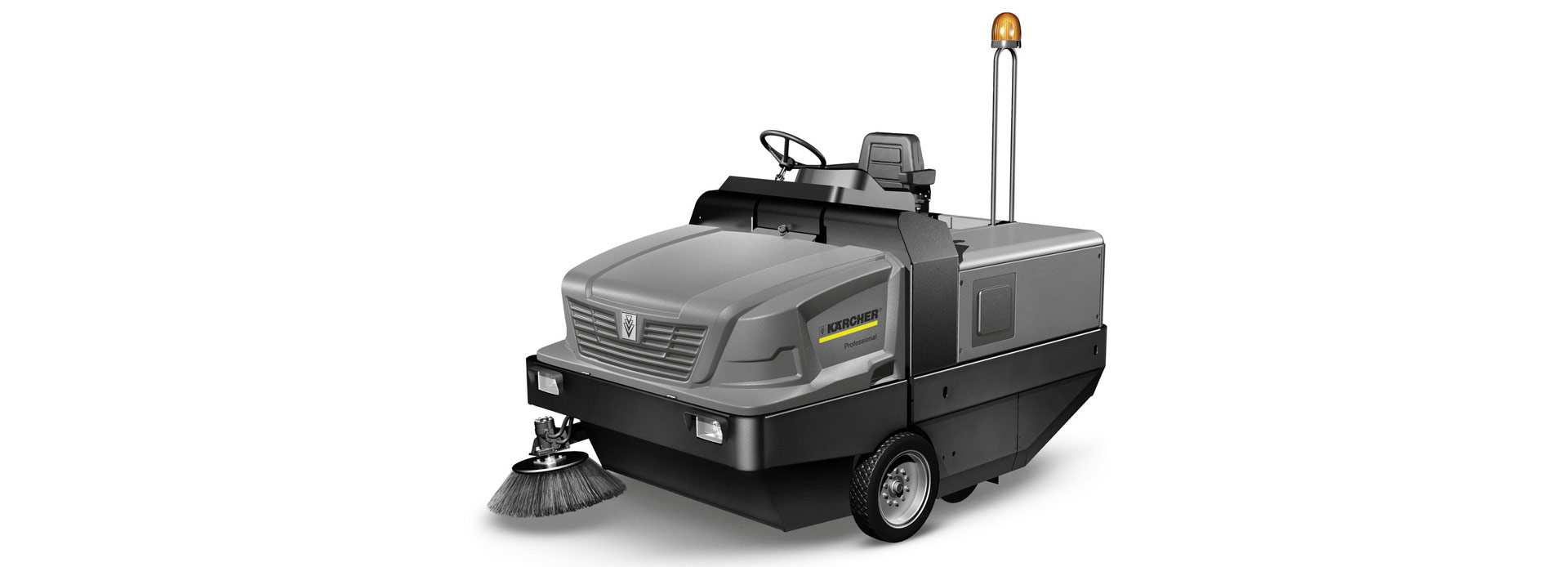

Karcher KM 150500 R D industrial sweeper

Diesel-powered, fully hydraulic industrial sweeper with three-wheel rear steering. For tackling tough jobs in the building material or metal-working industries, foundries and other dirt-intensive sectors.

Features and Benefits

Efficient filter system

  • Flat pleated filter with 7 m² filter area. Effective cleaning with dual scraper. For dust-free sweeping.

Comfortable workspace

  • All control elements are clearly arranged and within easy reach. All displays within view. Optional: cabs with heating or air-conditioning.

Simple operation, maintenance and servicing

  • Very simple technology with tried-and-tested components: fully hydraulic drive, electric rather than electronic. Easy access to the motor compartment for quick and easy servicing. Main sweeper roller and flat pleated filter can be changed without tools.

Diesel operation

  • Long work intervals.
  • Powerful motorization

Optional four-wheel chassis

  • Improves traction on slippery surfaces and uneven surface.
  • Increases ride comfort and safety.
  • Ideal for use on sensitive surfaces due to low surface pressure.

Hydraulic high container emptying

  • Emptying the waste is safe and easy.
  • High dump system up to 1.52 m.

Dustpan principle

  • Good intake of fine and coarse waste.
  • Low dust dispersion.

Extensive range of accessories and attachment kits

  • Easily adapts to individual cleaning requirements.
  • Impressive equipment (e.g. comfort cab, air-conditioner, heating).
  • Second and third side brushes available on request.

Fully hydraulic traction drive and main sweeper roller/side brush drive

  • Very low-maintenance.
  • No wear and tear.
  • Very long-lasting.

Cyclone pre-filter

  • Increased lifetime of the motor filter.
  • Longer maintenance intervals.
KM150/500
Drive 4-stroke diesel engine / Yanmar
Max Area Performance (m²/h) 18,000
Working Width (mm) 1,200
Container (L) 500
Working Speed (km/h) 12
Filter Area (m²) 7
Weight (with accessories) (kg) 1,440
Dimensions (L x W x H) 2,442 × 1,570 × 1,640
