Hyster RS46 Reachstacker
Hyster RS46 Reachstacker

Type:high capacity

Make:hyster

Power:Internal Combustion

Max Capacity:46 tonne

Max Height:15 metres

Long regarded as one of the most reliable and robust container handlers in the world, the Hyster® ReachStacker’s energy-efficient technologies can offer proven fuel savings of up to 25%.

Hyster® is pleased to announce the next evolution in ReachStacker container handlers with a new state-of-the-art cab and controls.

New Cabin Design

  • New structure with additional driver space and optional trainer seat
  • Enhanced visibility with full glass doors
  • Panoramic armoured top glass (FOPS certified)
  • The steel bars will remain available via an option
  • A new control arm with clearly visible controls
  • A seven inch touch screen display with rotary button
  • Lateral sliding seat for improved ergonomics
  • Extra floor space in front of the cabin has been created in the cab by utilising the space otherwise used by the tilt cylinders

New Options

  • Directional control on steering column or joystick
  • Top window with armoured glass and additional steel bars (FOPS certified)
  • A variety of seat options
  • Automatic park brake
  • Truck start by key switch with start button or by operator password
  • Tyre pressure monitoring system
  • Sun visors for front window and a heated rear window
  • Automatic truck shutdown with timer (seat switch, idle, sequence)

Type:high capacity

Make:hyster

Power:Internal Combustion

Max Capacity:46 tonne

Max Height:15 metres

Specifications

RS46-33XD/62 RS46-36XD/62 RS46-41XD/67 RS46-41XD/62S RS46-41XD/67S RS46-29XD/62 RS46-41XD/75S
Load Capacity (kg) 46,000 46,000 46,000 46,000 46,000 46,000 46,000
Load Centre (mm) 1,865 1,865 1,865 1,865 1,865 1,865 1,865
Maximum Lift Height (mm) 15,260 15,355 15,355 15,355 15,355 15,260 15,225
Engine Type Cummins QSL 9L / QSM 11L Diesel Cummins QSL 9L / QSM 11L Diesel Cummins QSL 9L / QSM 11L Diesel Cummins QSL 9L / QSM 11L Diesel Cummins QSL 9L / QSM 11L Diesel Cummins QSL 9L / QSM 11L Diesel Cummins QSL 9L / QSM 11L Diesel
Transmission Dana S.O.H TE 30 Dana S.O.H TE 30 Dana S.O.H TE 30 Dana S.O.H TE 30 Dana S.O.H TE 30 Dana S.O.H TE 30 Dana S.O.H TE 30
1st Row Stacking Height 5 / 5 5 / 5 5 / 5 5 / 5 5 / 5 5 / 5 5 / 5
2nd Row Stacking Height 4 / 5 4 / 5 4 / 5 4 / 5 4 / 5 4 / 5 4 / 5

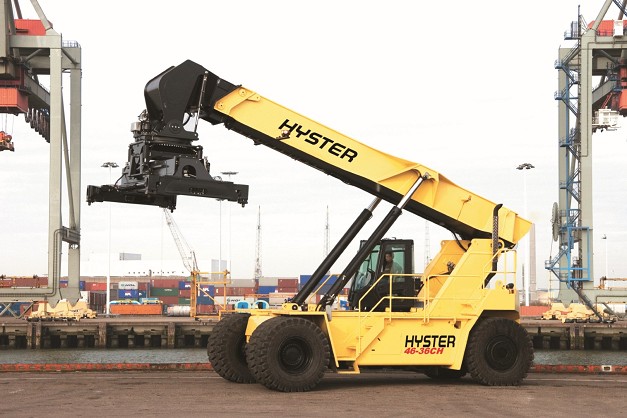

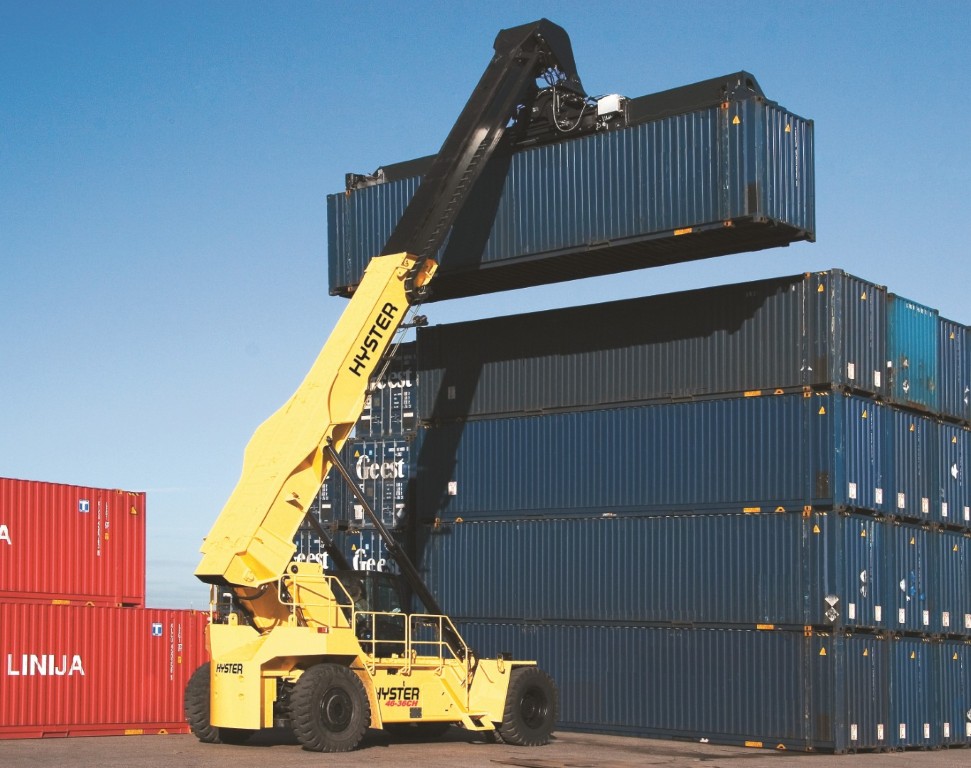

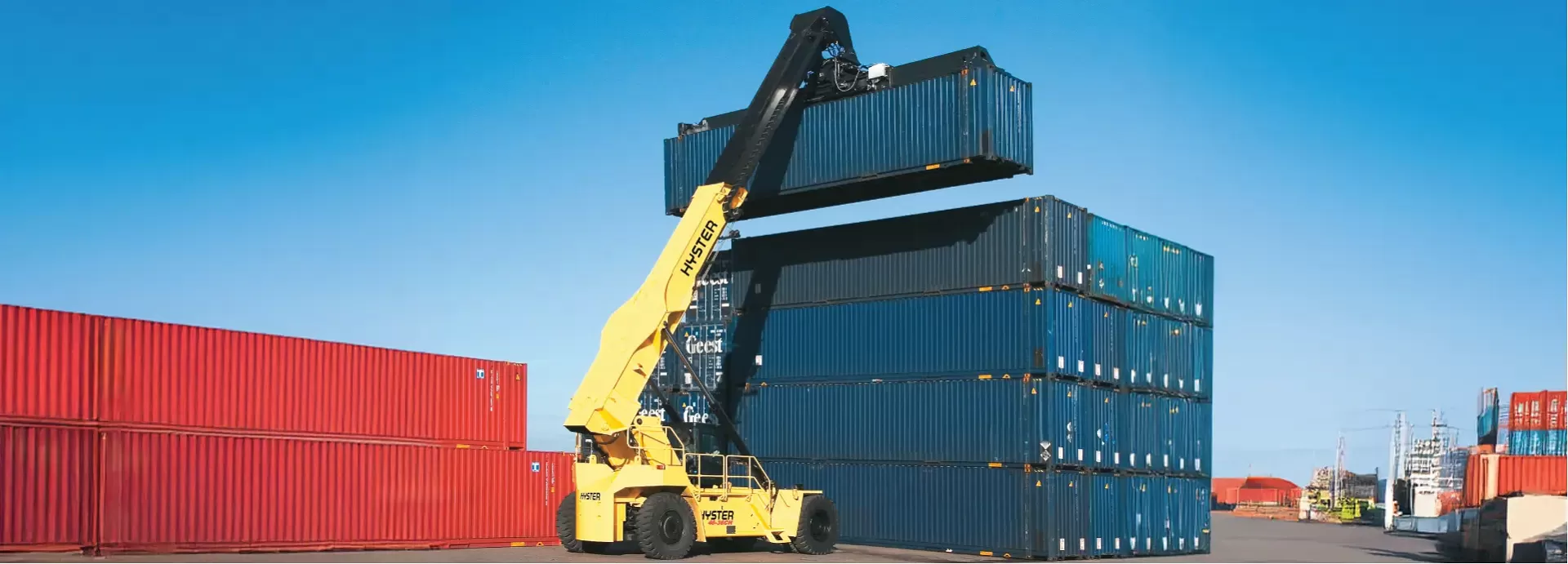

Product Images
